Novel Sirpα-Fc Fusion Protein IMM01 Exhibits Dual Anti-Tumor Activities By Targeting CD47/Sirpα Signal Pathway

Background: This study aims to evaluate the anti-tumor mechanism of IMM01, a novel recombinant SIRPα-Fc fusion protein targeting CD47-SIRPα pathway.

Methods: IMM01 was a recombinant fusion protein of SIRPα (V2) extracellular segment domain 1 and human IgG1 Fc, with the N glycosylation site N80 mutated to A (Alanine) in D1 region. IMM01 fusion proteins were produced using in house developed CHO-K1 cell expression system. IMM01 blocking activities on Jurkat-CSR (Jurkat-CD47KO-CARSIRPα) cells, antibody-dependent cellular phagocytosis (ADCP), antibody-dependent cell-mediated cytotoxicity (ADCC) and complement-dependent cytotoxicity (CDC) assays were done by flow cytometry. Detection of cytokines of IL-1β, IL-2, IL-4, IL-5, IL-6, GM-CSF, IFN-γ, IL-10 and TNF production by PBMC was done CBA assay. In vivo mechanism of action study was done in different mouse models including HL-60 CB17-SCID, Daudi CB17-SCID, SNU-1 CB17-SCID, Raji CB17-SCID and CT26-hPDL1(Tg) hCD47(Tg) mPDL1(KO) mCD47(KO). In addition, human red blood cells binding and erythrocyte agglutination of IMM01 were also evaluated.

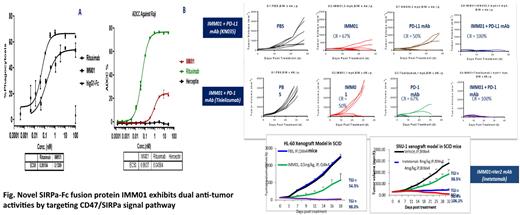

Results:In vitro binding assay revealed that IMM01 has a strong binding affinity to CD47 with lowest EC50 at 0.4967 nM. The removal of N-glycosylation modification improves the consistence and purity of the IMM01 protein expression, and the potential mitigation of immunogenicity. Using a chimeric SIRPα receptor protein expressing cell line, IMM01 not only can block the CD47 at the protein level, but also block the signal transduction at the cellular levels. Compared to negative (hIgG1-Fc) controls, IMM01 stimulated secretion of minimal amount of IL-10 and TNF but inhibited IL-8 production by PBMC. IMM01 can induce strong ADCP and moderate ADCC, but not the CDC activities. The strong phagocytosis against tumor cells is dependent on interaction of Fc with activating FcγRs on the presence of macrophages. Mechanism of action studies demonstrated that IMM01 induced strong phagocytosis against tumor cells was attributed to dual activities of blocking "don't eat me" signal and activating "eat me" signal. IMM01 has strong and robust in vivo anti-tumor activities in different mouse tumor models either as monotherapy on hematological malignancies, or in combination therapy with PD-L1 mAb, PD-1 mAb, CD33 mAb, and HER-2 mAb, respectively. The in vivo therapeutic efficacy of IMM01 was done in HL-60 xenograft model showed that 100% of the mice achieved CR after administration of IMM01 at 5mg/kg for 2 weeks. Also, 100% of mice achieved CR after IMM01 combined with the above mentioned mAbs in different mouse models, respectively. This illustrated that IMM01 has a great therapeutic potential in combination with these commonly used immunotherapy or targeted therapy agents to be used in the treatment of solid tumors and hematological malignancies. Finally, IMM01 demonstrated a favorable safety profile with no human RBC binding, nor hemagglutination induction.

Conclusion: Our study results demonstrated that, as a novel bi-functional SIRPα-Fc recombinant protein, IMM01 has very strong anti-tumor activities with a good curative effect on mouse xenograft tumor models with dual anti-tumor activities by blocking CD47 "don't eat me" signal and activating the phagocytosis "eat me" signal. Furthermore, IMM01 demonstrated a well synergistic effect when combined with different immunotherapeutic agents. Importantly, our results revealed that IMM01 has a favorable safety profile with no human RBC binding activity and no hemagglutination induction. Phase I clinical study is ongoing, and the clinical trial results will be reported soon.
